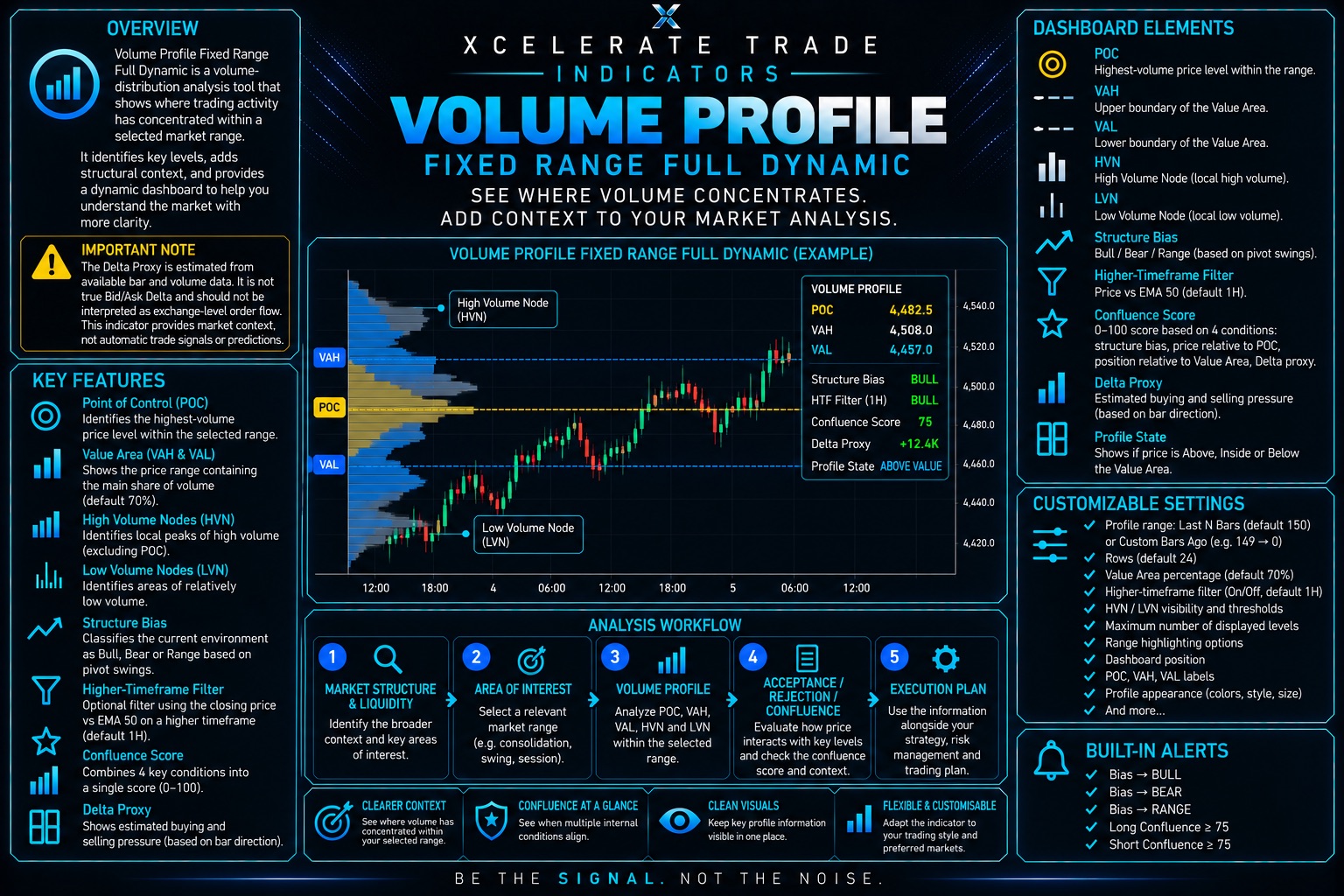

Volume Profile Fixed Range Full Dynamic Indicator

The Volume Profile Fixed Range Full Dynamic Indicator is a volume-distribution analysis tool developed by the Xcelerate Trade team to help traders understand where trading activity has concentrated within a selected market range.

The indicator builds a composite Volume Profile across a user-defined bar window and identifies several important reference levels:

• Point of Control (POC);

• Value Area High (VAH);

• Value Area Low (VAL);

• High Volume Nodes (HVN);

• Low Volume Nodes (LVN).

It extends the traditional Volume Profile framework with market-structure bias, an optional higher-timeframe filter, a confluence score, a Delta proxy and a compact dashboard.

Rather than treating these elements as standalone trading signals, the indicator is designed to provide an additional layer of market context.

It can help traders evaluate where volume has concentrated, where relatively little activity has occurred, how price is positioned relative to the Value Area and POC, and whether several contextual conditions are currently aligned.

The indicator is built by the Xcelerate Trade team and is designed to complement concepts used throughout the Xcelerate Trade Academy and playbook, including market structure, liquidity, Supply and Demand, support and resistance, volume analysis, and Risk Management.

What Is Volume Profile?

Traditional volume bars show how much volume occurred during a particular period of time.

Volume Profile approaches volume from another perspective:

At which price levels did trading activity concentrate within the selected range?

The selected price range is divided into multiple rows, and available volume is distributed across them.

This creates a profile showing where relatively high and low concentrations of trading activity occurred.

High-volume areas indicate prices where more activity was recorded, while low-volume areas indicate prices where less activity occurred within the selected range.

Volume Profile does not predict where price must move next.

Its purpose is to provide a structured representation of how volume was distributed across price within the market segment being analyzed.

POC and Value Area

The Point of Control (POC) represents the price row with the highest volume inside the selected profile.

It identifies the greatest concentration of recorded volume within that range and can be displayed as a line together with its corresponding price label.

The POC is often monitored as an important balance reference because it shows where the largest amount of profile activity occurred.

However:

POC ≠ Guaranteed Price Magnet

Price is not required to return to the POC.

Its role is to identify the highest-volume area within the selected range, not to predict that price must revisit it.

The Value Area represents the region containing a specified percentage of total profile volume.

The default is:

Value Area = 70%

Its boundaries are:

VAH - Value Area High

The upper boundary of the Value Area.

VAL - Value Area Low

The lower boundary of the Value Area.

Together, POC, VAH, and VAL provide a simple framework for understanding where the majority of activity occurred and whether price is currently trading inside or outside that region.

A move above VAH or below VAL can provide useful context when evaluating expansion, rejection, or potential acceptance outside the previous Value Area.

It does not automatically create a Buy or Sell signal.

High Volume Nodes and Low Volume Nodes

The indicator can automatically identify High Volume Nodes (HVN) and Low Volume Nodes (LVN) within the selected profile.

HVN

HVNs represent local peaks of relatively high volume, excluding the POC.

They highlight areas where trading activity was concentrated and can provide context around consolidation, balance, acceptance, or repeated market interaction.

An HVN should not automatically be interpreted as support or resistance.

Its relevance depends on how price interacts with the area and on the surrounding market structure.

LVN

LVNs represent local areas of relatively low volume.

These thinner sections of the profile show where less trading activity occurred within the selected range.

Price can sometimes move more efficiently through low-volume areas when they are revisited.

However:

LVN ≠ Guaranteed Fast Movement

A previous LVN can later become an area where new activity develops.

The indicator tells us how volume was distributed in the selected range. Price action tells us how the market responds when those areas are revisited.

Structure Bias and Higher-Timeframe Filter

Volume Profile Fixed Range Full Dynamic also adds structural context to the profile.

The Structure Bias uses pivot swings to classify the current environment.

A structure based on Higher Highs and Higher Lows can produce:

BULL

A structure based on Lower Highs and Lower Lows can produce:

BEAR

When neither condition is clearly present:

RANGE

This provides a simplified structural reference within the dashboard.

It should not replace a complete market-structure analysis involving liquidity, BOS, MSS, CHoCH, higher-timeframe structure, and other relevant information.

The indicator also includes an optional Higher-Timeframe Filter, enabled by default.

The default higher timeframe is: 1H.

The filter evaluates the higher-timeframe closing price relative to an EMA 50, adding another directional reference to the dashboard.

Its purpose is to provide context, not to assume that price above or below an EMA determines the next market direction.

Confluence Score

The indicator combines four internal conditions into a Confluence Score from 0 to 100.

Each component can contribute up to 25 points:

• Structure Bias;

• price relative to POC;

• position relative to the Value Area;

• Delta proxy direction.

When bullish conditions align, the dashboard can display a LONG reading.

When bearish conditions align, it can display a SHORT reading.

For example:

LONG 75

SHORT 75

Otherwise, the dashboard can remain:

NEUTRAL

The score provides a quick way to see whether several conditions calculated by the indicator are currently aligned.

There is an important distinction:

Confluence Score ≠ Trade Signal

LONG 75 does not mean:

Buy now.

SHORT 75 does not mean:

Sell now.

The score tells us that several conditions inside the indicator's model are aligned.

A complete trading setup may still require market structure, liquidity, an Area of Interest, Entry confirmation, invalidation, session context, and Risk Management.

Delta Proxy

The indicator includes a Delta proxy that estimates directional volume skew within the selected profile.

It divides available volume according to bar direction to estimate whether bullish or bearish volume is currently stronger within its model.

This is an approximation.

Delta Proxy ≠ True Bid/Ask Delta

The Delta proxy does not use actual transactions executed at the Bid and Ask and should not be interpreted as exchange-level Footprint or true order-flow Delta.

Its role is to provide an additional directional input for the indicator's confluence calculation.

Dedicated order-flow platforms using exchange-level Bid/Ask data may produce different information because they are measuring different underlying data.

Profile Range

Unlike session-based Volume Profiles, this indicator focuses on a range controlled by the trader.

There are two primary options:

Last N Bars

A fixed window using the most recent bars.

The default is:

150 bars

Custom Bars Ago

The trader can define the beginning and end of the range using bar offsets.

For example:

149 → 0

An optional shaded box can highlight the selected range directly on the chart.

The range should have an analytical purpose.

Examples include:

• a consolidation;

• a directional swing;

• a trading range;

• a section surrounding an Area of Interest;

• another clearly defined segment of market activity.

A profile built around a consolidation can produce very different information from one calculated across an entire directional swing.

For this reason:

The selected range is part of the analysis.

How to Use the Volume Profile Indicator

A structured workflow can begin with the broader market context:

Market Structure / Liquidity → Area of Interest → Volume Profile → Acceptance / Rejection / Confluence → Execution Plan

For example, a trader may first identify an important liquidity area, Supply or Demand zone, support or resistance level, Order Block, or structural Area of Interest.

The Volume Profile can then help evaluate:

• where the POC is located;

• whether price is inside or outside the Value Area;

• where important HVNs and LVNs have formed;

• whether the indicator's Structure Bias aligns with the broader market structure;

• whether the higher-timeframe filter supports or conflicts with that context;

• whether the Delta proxy adds directional confirmation;

• whether several internal conditions are aligned through the Confluence Score.

This keeps the role of the indicator clear.

Context comes first. Volume Profile helps us understand how trading activity was distributed within that context.

A Practical Example

Suppose price has been trading inside a clearly defined consolidation.

The trader applies the Volume Profile specifically across that consolidation.

The profile identifies a central POC, VAH and VAL, together with an HVN and an LVN.

Price then moves toward VAH.

Reaching VAH does not automatically create a short setup.

Instead, the trader observes what happens around the level.

Does price reject VAH and return inside the Value Area?

Does price move above VAH but quickly fail to remain there?

Or does price continue trading above the previous Value Area and begin establishing activity outside it?

This distinction matters.

Trading beyond Value ≠ Confirmed Acceptance beyond Value

A single close above VAH or below VAL does not by itself confirm that the market has accepted the new area.

Subsequent price behaviour, structure, liquidity, volume, and the broader trading context still need to be evaluated.

The Volume Profile provides the reference points.

Price behaviour around those reference points provides the next layer of information.

Balance, Breakouts and Acceptance

Inside a balanced market, the POC can provide a useful reference when studying price interaction within the Value Area.

Price may repeatedly interact with high-volume areas as the market continues to trade within the established range.

When price begins moving outside VAH or VAL, the profile can also help us evaluate breakout context.

For example, a move above VAH can be evaluated by asking:

• Does price remain above Value?

• Does it quickly return inside?

• Is broader structure aligned with the move?

• Is liquidity supporting the same scenario?

• Does new market activity begin to develop outside the previous Value Area?

The same process applies below VAL.

The indicator does not determine whether a breakout will succeed or fail.

It gives us structured levels around which we can evaluate what the market does next.

Combining Volume Profile With the Xcelerate Trade Playbook

Volume Profile fits naturally within the Xcelerate Trade framework because it complements concepts traders learn throughout the Academy and apply through the playbook.

Relevant context can include:

• Market Structure;

• Liquidity;

• Supply and Demand;

• support and resistance;

• Order Blocks;

• Fair Value Gaps;

• CHoCH;

• MSS;

• BOS;

• session context;

• higher-timeframe direction;

• Risk Management.

These elements are not mandatory conditions that must all appear together.

Their relevance depends on the strategy and market environment.

For example, after identifying an Area of Interest through market structure and liquidity, we can use the profile to ask:

Where did volume concentrate around this area?

Is the Area of Interest positioned near POC, VAH, VAL, an HVN, or an LVN?

Is price moving from a high-volume area into a thinner part of the distribution?

Does the profile support, weaken, or simply add context to the scenario already being evaluated?

The order is important.

We do not begin with the indicator and search for a reason to trade.

We begin with market context and use the indicator to deepen our understanding of that context.

Choosing the Timeframe and Recommended Settings

The indicator is designed for futures, forex, crypto, and stocks where suitable volume information is available.

It can be used across different timeframes according to the instrument and analytical objective.

The current default settings provide practical starting points:

Profile Range: 150 bars

Defines the default lookback window.

Rows: 24

Defines the number of price buckets used to construct the profile.

Increasing the number of rows provides finer separation of the volume distribution and can be useful on higher timeframes such as 4H or Daily.

More detail does not automatically mean better analysis. The objective is to use enough resolution to represent the selected range clearly without creating unnecessary noise.

Value Area: 70%

Defines the percentage of profile volume included within the Value Area.

Higher-Timeframe Filter: ON

Default HTF: 1H

Uses the higher-timeframe close relative to EMA 50 as an additional directional reference.

HVN and LVN visibility, thresholds, maximum displayed levels, range highlighting, dashboard position, POC/VAH/VAL labels, and profile appearance can also be configured.

On higher timeframes, if HVN detection becomes sparse, traders can keep the comparison with average row volume enabled and/or reduce the minimum HVN percentage relative to POC.

These settings are starting points, not universal optimal values.

The appropriate configuration can vary according to the instrument, timeframe, volatility, selected range, and trading framework.

Alerts

The indicator includes built-in alerts for:

• Bias → BULL;

• Bias → BEAR;

• Bias → RANGE;

• Long Confluence ≥ 75;

• Short Confluence ≥ 75.

Alerts allow traders to monitor important changes without continuously watching the dashboard.

An alert means that the corresponding indicator condition has been detected.

It does not mean that a complete trading setup is present.

Alert Detected ≠ Trade Required

The alert tells us that something has changed.

The strategy determines whether that change is relevant.

When Additional Context Matters

Volume Profile readings become less useful when interpreted without considering the surrounding market environment or the purpose of the selected range.

Additional context is particularly important when:

• the selected range has no clear analytical purpose;

• price structure is fragmented or unclear;

• the market is experiencing abnormal volatility;

• a major economic release is approaching or has just occurred;

• the Confluence Score conflicts with broader market structure;

• the profile covers several very different market conditions;

• the available volume data has limitations;

• synthetic chart types are being used.

A high Confluence Score should not override contradictory market information simply because the dashboard displays LONG or SHORT.

Likewise, a POC, VAH, VAL, HVN, or LVN should not be traded automatically simply because price reaches it.

What the Volume Profile Indicator Does Not Tell Us

The indicator can help answer questions such as:

Where has volume concentrated within the selected range?

Where are POC, VAH, and VAL?

Where are the main HVNs and LVNs?

Is price above or below the POC?

Is price inside or outside the Value Area?

What Structure Bias is currently identified?

Does the higher-timeframe filter align with that bias?

What direction does the Delta proxy indicate?

How many of the indicator's internal conditions are aligned?

What it does not tell us by itself is:

Should we enter a trade?

A Volume Profile level, BULL/BEAR bias, Delta proxy, or LONG/SHORT confluence reading is an analytical input, not a complete trading decision.

The indicator does not guarantee that:

• price will return to POC;

• VAH or VAL will hold;

• an LVN will produce rapid movement;

• an HVN will act as support or resistance;

• a breakout will continue;

• a high Confluence Score will produce a winning trade.

The strategy still defines the setup, Entry conditions, invalidation, trade management, and Risk Management.

Understanding the Data Limitation

This is one of the most important aspects of using the Volume Profile Fixed Range Full Dynamic Indicator correctly.

Volume Profile depends on the volume information available for the selected instrument.

For exchange-traded instruments with appropriate data, reported volume can represent actual traded activity on that exchange.

In other markets or data feeds, available volume may represent a different measure of activity rather than a complete centralized record of all transactions.

Traders should therefore understand what the underlying volume represents for the instrument they are analyzing.

Synthetic chart types can also affect the calculation.

For example, Heikin Ashi modifies bar structure compared with standard candles and can distort the volume distribution used by the indicator.

Standard candles on liquid instruments are therefore generally preferable.

The Delta proxy is also an approximation based on bar direction, not true exchange Bid/Ask transaction data.

Therefore:

Delta Proxy ≠ True Bid/Ask Delta

Finally, the Fixed Range is controlled through indicator inputs rather than by manually dragging a range on the chart.

The Pine implementation supports a maximum profile lookback of 501 bars.

Very wide ranges on lower timeframes can therefore reach this limit.

Volume Profile Fixed Range Full Dynamic Indicator and Strategy

The Volume Profile Fixed Range Full Dynamic Indicator is designed to answer a specific question:

How was trading activity distributed across price within the market range we have chosen to analyze?

Price remains the primary source for analyzing market structure.

Liquidity helps us identify where important interactions may occur.

Volume Profile adds another layer by showing where trading activity was concentrated and where relatively little volume occurred within the selected range.

That distinction is important.

We do not buy simply because price reaches VAL.

We do not sell simply because price reaches VAH.

We do not assume that price must return to POC.

We do not assume that every LVN will produce rapid movement.

We do not enter a trade simply because the dashboard displays LONG 75 or SHORT 75.

We use this information to understand the volume distribution and evaluate whether it supports, weakens, or adds context to what we can already observe through market structure, liquidity, and price.

That is where the Volume Profile Fixed Range Full Dynamic Indicator becomes most useful: as a tool from the Xcelerate Trade playbook and Academy framework, providing context and confluence within a structured trading process rather than replacing one.

A dedicated Volume Profile strategy is also part of our strategy framework and will be available separately on the Xcelerate Trade platform.

The indicator provides the Volume Profile analysis and confluence layer, while the strategy brings these elements into a complete trading framework.

Explore our trading strategies.

The Volume Profile Fixed Range Full Dynamic Indicator is also available directly on TradingView.

View Volume Profile Fixed Range Full Dynamic Indicator on TradingView.
